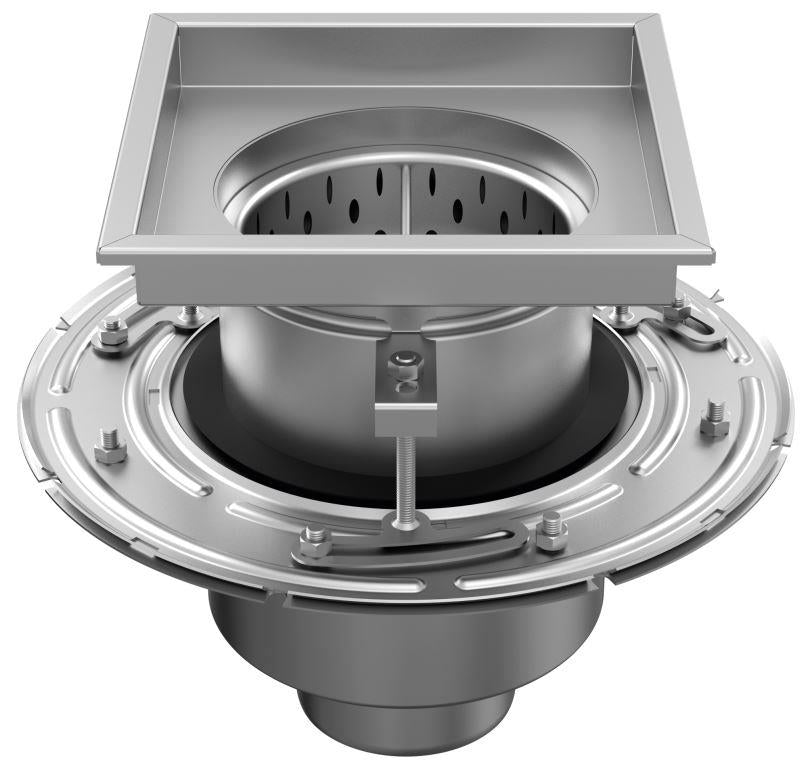

Stainless steel AISI 304 (1.4301). a plate thickness of 1.5 mm. The round pit house has a diameter of 348mm, telescopic grid attachment. diameter 308mm. It is adjustable in height between 90 and 145 mm, it can be rotated through 360° and can be tilted by 6°. Inspectable odor trap. EPDM seal, according to the European standard EN 1253. The well body and odor trap (flow rate 13.9 l/s) are designed in such a way that no dirty water remains in the well body, but only in the stench trap according to EHEDG. The height of the water seal is 50 mm according to EN1253. clamping flange, 100 mm wide and sealing and drainage ring. The top surface is square, 400 x 400 mm. The outer edges are pleated in an inverted pleated U-edge. solid stainless steel full material edge reinforcement against mechanical and thermal stress according to EHEDG. The drain has a dirt trap (capacity 5 l). handle. After folding and welding, the whole is pickled by immersion and passivated. The drain is equipped with adjusting screws and anchoring.
