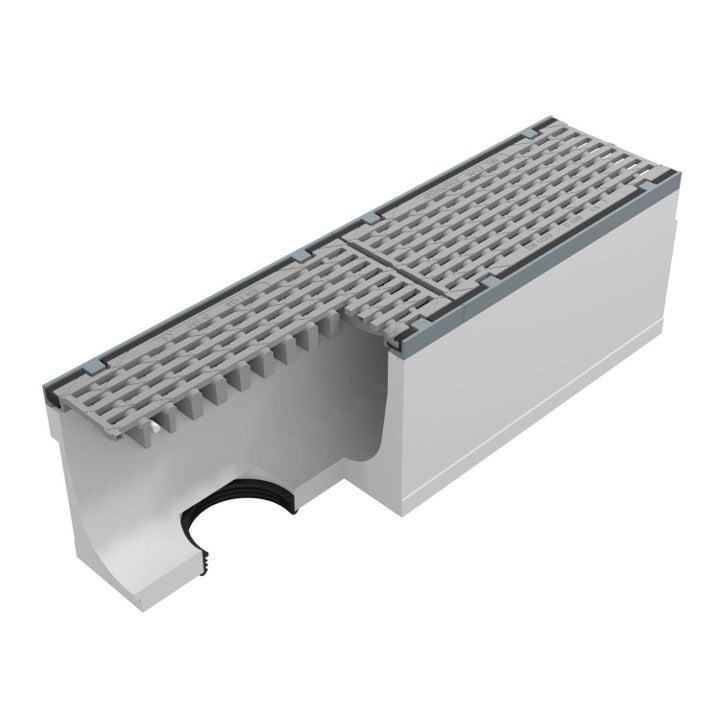

Grate gutter Maxipur 200. L=1m. Long bar grate. Under drain 160mm. D400KN
Grate gutter Maxipur 200. L=1m. Long bar grate. Under drain 160mm. D400KN
Grate gutter Maxipur 200. L=1m. Long bar grate. Under drain 160mm. D400KN
Grate gutter Maxipur 200. L=1m. Long bar grate. Under drain 160mm. D400KN

Grate gutter Maxipur 200. L=1m. Long bar grate. Under drain 160mm. D400KN

Hydrotec
Artikelnummer: 121612440507

Dient besteld te worden

Type M according to NEN EN 1433. High-quality fiber-reinforced concrete C35/45. With 5mm cast iron edge protection and integrated sound-dampening inlay. Bottom outlet with 160mm sealing ring. Equipped with cast iron long-rod grate, opening 22/12mm with patented screwless long-rod lock. Inlet diameter 524cm/m. Internal width 200mm. External dimensions LxWxH=1000x258/264x310mm. Kiwa certificate in accordance with BRL 5070. Provided with CE marking. Weight 104kg.
