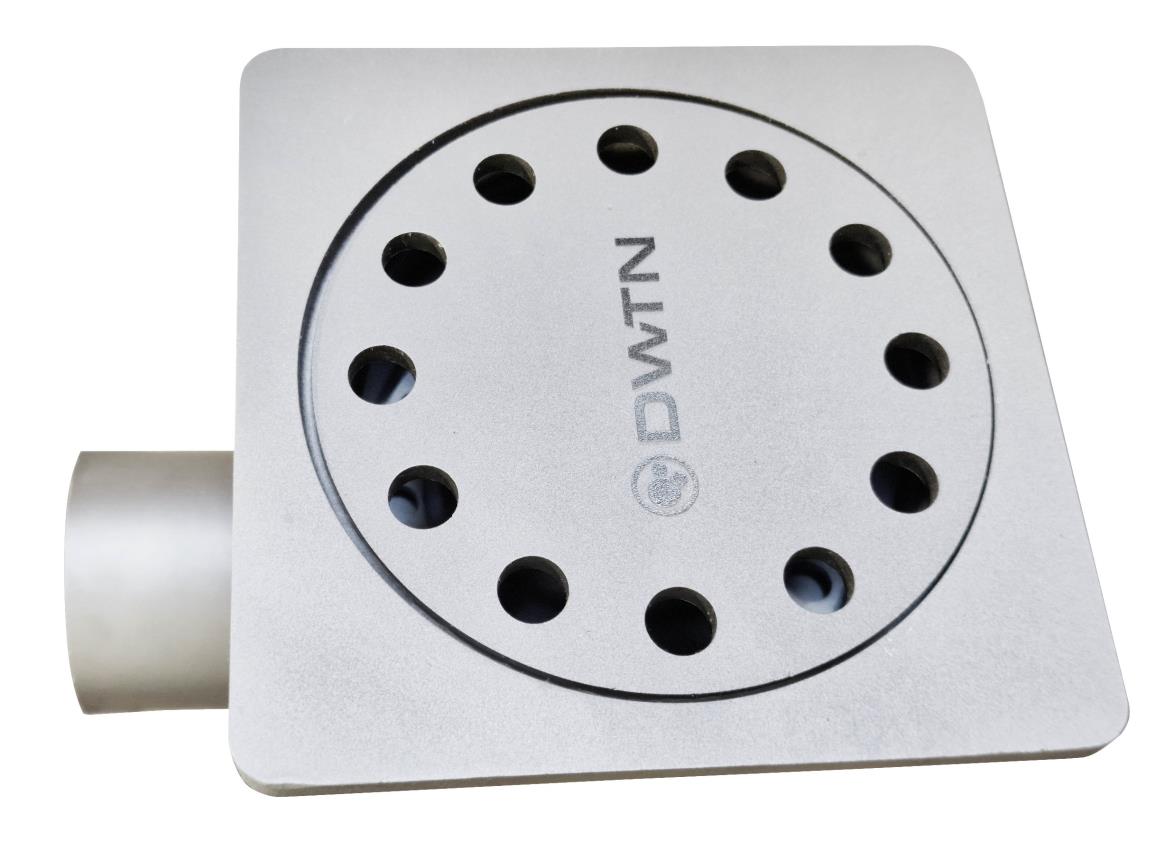

Floor drain / bell drain WD200/63H1. Dimensions 200 x 200 mm. Well housing height 75 mm. Total height 145 mm. Material stainless steel 304 (1.4301). Plate thickness grid 6 mm. Round well housing diameter 157 mm, plate thickness 1.5 mm. Load B, 125kN according to EN1433. Flow rate 1.5 l/s or 90 l/min. Finish pickled by immersion and passivated.
