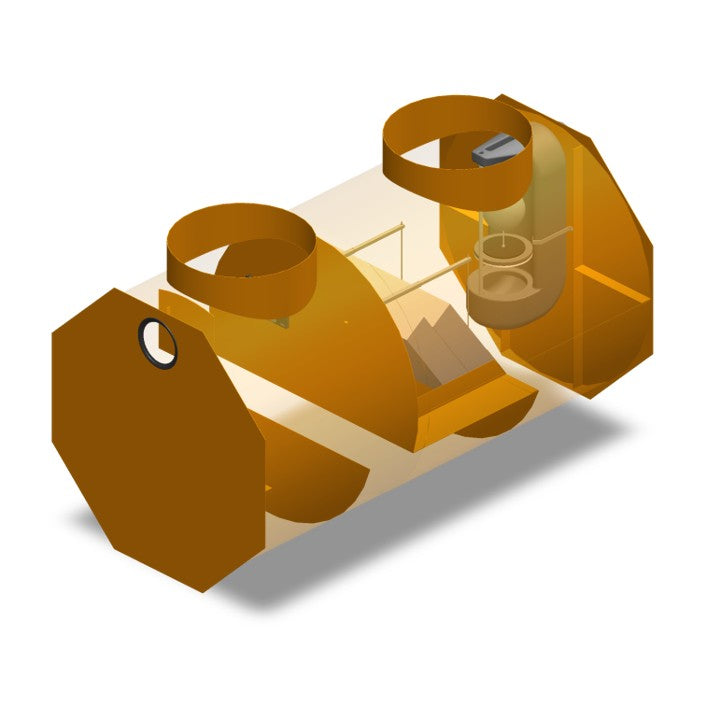

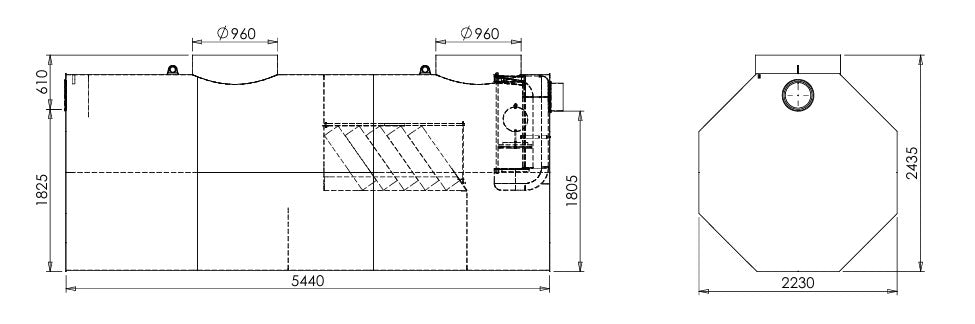

Coated steel (epoxy-polyester powder coating) coalescing separator for light mineral liquids with a nominal capacity of 125 l/s. Integrated sludge trap of 12,500 l. Monolithic. Connections 400 mm. Compliant with EN 858. CE marked. Residual oil content according to EN-858-1; < 5 mg/l (class 1). Separator equipped with steel connection stubs, self-closing float on the outlet side, tared to a density of 0.85 g/cm³ and a polypropylene honeycomb coalescing unit. Oil storage capacity 1250 l. Diameter 2410 mm, length 5,440 mm, height 2615 mm (excl. extension shaft and pit cover). 2x manhole 1000 mm. Suitable for traffic class D, 400KN according to NEN-EN 124. Inlet connection depth: 660 mm, outlet: 680 mm (excluding extension shaft and manhole cover). Total weight: 2,050 kg.
