Self-supporting drainage channel HRI 250 type I, specially designed for industrial applications and heavy loads.
Areas of application (C250 - D400 - E600 - F900)
- Footpaths - Pedestrian zone
- City centers - Road network
- Roadside - Parking lots
- Warehouse / storage space - Loading and unloading docks
- Industry - Airports
- Port area - Docks

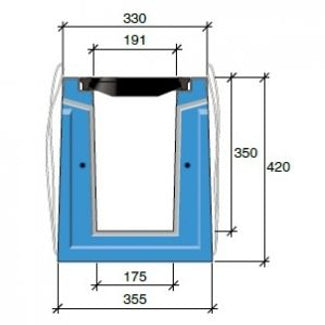

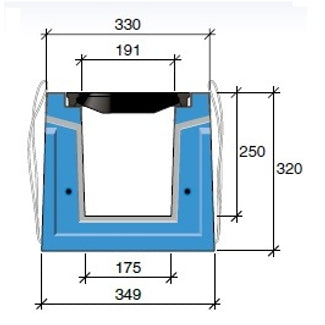

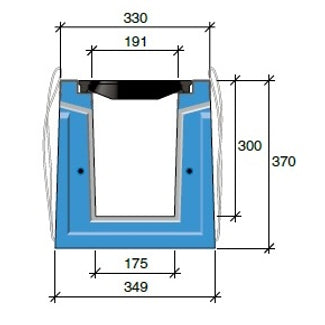

Properties of the drainage channel
Self-supporting drainage channel Type I (EN 1433)
- High-quality self-compacting concrete C55/67, resistant to
exceptional weather conditions
- The concrete used meets the environmental requirements such as
described in the EN-206 standard (NAF2) CX4. XS1. XD3. XF3. XA1.
- Roughness coefficient of 95 according to Manning Strickler
- Length = 2.25m and 0.75m
- Sturdy wide edge protection in galvanized steel connected to the
reinforcement
- Tongue and groove system with recess that is sealed to create a
to ensure a waterproof system (also with male/female
end plates)
- Quick installation due to the length (2.25 m) and the presence of
centering pins for alignment
- Length, mass of the elements and the centering pins ensure the
stability of the gutter
Properties of the grid
Grill BANANE (C250 - D400 - E600 - F900):
Pre-assembled grate made of high-quality nodular cast iron FGS 500-7
- Length = 0.75m
- Delivered bolted (stainless steel) to the site (not visible due to protective sleeves): (C250/D400) 2 stainless steel bolts; (E600/F900) 4 stainless steel bolts per grid
- Tightening torque of the bolts on the grids of 57 N/m
- Bolts type M10-35 treated with ceramic grease and provided with a
stainless steel head
- Non-slip surface with diamond profile to increase water retention capacity.
increase
- Absorption surface: 810 cm2/m
Grill SAONE (C250 - D400):
Pre-assembled grate made of high-quality nodular cast iron FGS 500-7
- Length = 0.75 m
- Delivered bolted (stainless steel) to the site (not visible through
protective sleeves): 2 stainless steel bolts per grille
- Width of the openings is 14 mm in accordance with PPE obligations (e.g.
wheelchair users, cyclists, shopping trolleys, etc.) in accordance with
EN 1433.
- Tightening torque of the bolts on the grids of 57 N/m
- Bolts type M10-35 treated with ceramic grease and provided with a
stainless steel head
- Absorption surface: 690 cm2/m
Placement instructions
Self-supporting drainage channel Type I
- No concrete casing required
- Equipped with 2 lifting loops to lift the elements
- Load class guaranteed by the manufacturer for the whole
- Speed in placement
- Installation manual and video available

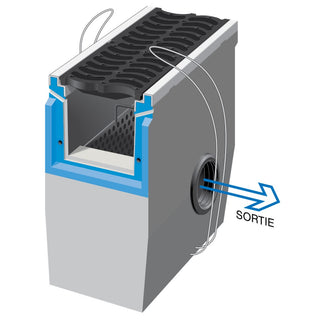

Sand trap element
- One-piece element with male/female connection, integrated
groove and center pins
- Equipped with 3 possible knock-outs for drainage to the sewer
- On request: integrated seal for watertight connection
smooth-walled pipe
- Dirt bucket in galvanized steel
- Total height: 0.60m
- Length: 0.75m
- Equipped with loops to lift the elements
